Appendix G

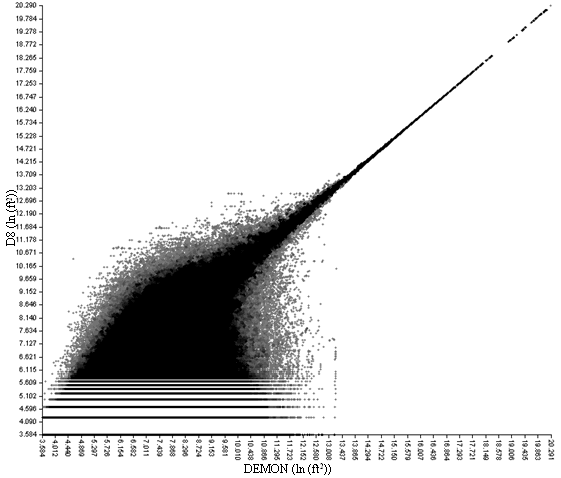

Appendix Figure G1. Plot of entire catchment area for a 2-m LiDAR DEM at Tahoma State Forest (Natural Log Values). The correlation between D8 and DEMON flow direction models indicates that D8 is a sufficient model for determining stream networks.

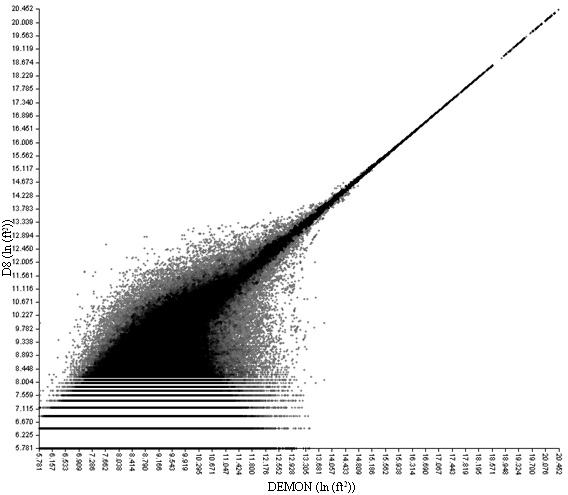

Appendix Figure G2. 6-m LiDAR Plot of catchment area comparing Demon and D8.

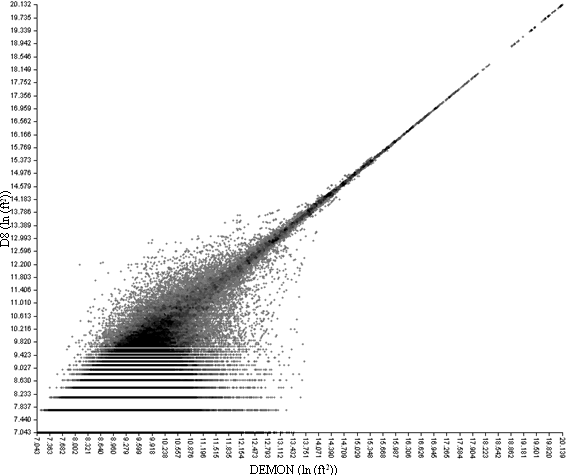

Appendix Figure G3. 10-m LiDAR Plot of catchment area comparing Demon and D8.

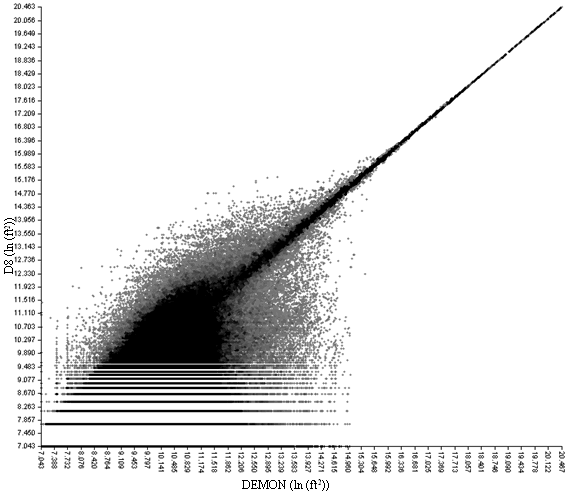

Appendix Figure G4. 10-m USGS plot of catchment area comparing Demon and D8.

D8 vs. Dinf

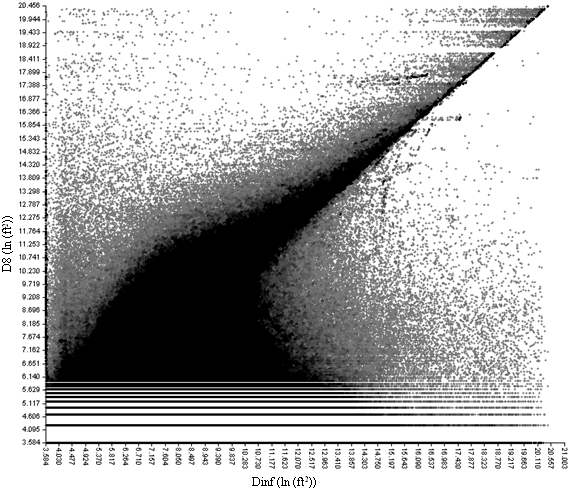

Appendix Figure G5. 2-m LiDAR Plot of catchment area comparing Dinf and D8.

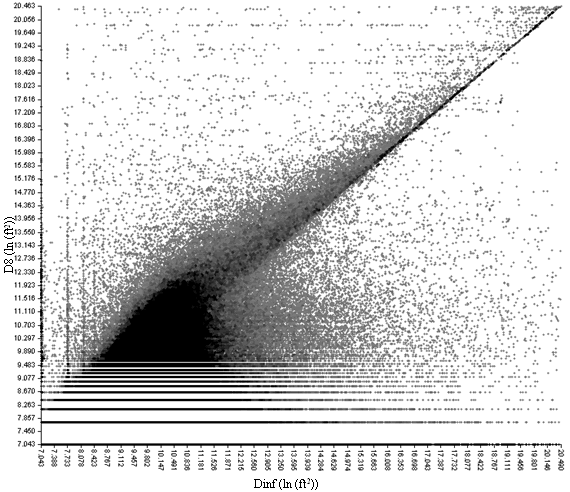

Appendix Figure G6. 10-m USGS Plot of catchment area comparing Dinf and D8.

MFD vs. Dinf

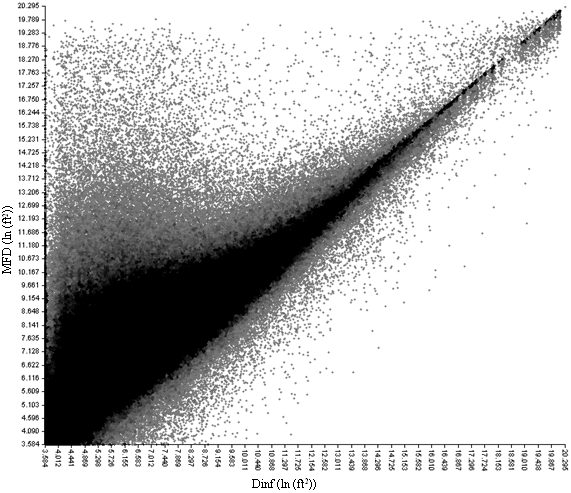

Appendix Figure G7. 6-m LiDAR Plot of catchment area comparing Dinf and MFD.

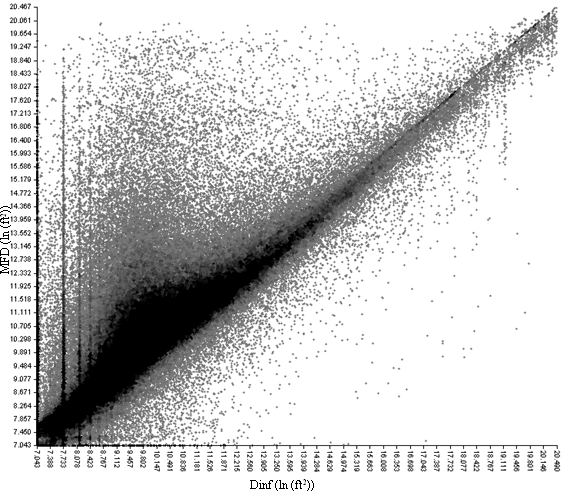

Appendix Figure G8. 10-m USGS Plot of catchment area comparing Dinf and MFD.
